Is EdgeCAM Right for You?

CNC Programming Across Milling, Turning, and Wire EDM for Job Shop and Contract Manufacturing

EdgeCAM is a CAM software platform that generates NC code for CNC machining operations spanning 2-axis through 5-axis simultaneous milling, 2-axis and multi-turret turning, mill-turn machining on combined spindle machines, and 2-axis and 4-axis wire EDM. It is used by CNC programmers, job shop operators, contract manufacturers, tooling shops, aerospace component suppliers, and mold and die producers who program a wide variety of part types on a rotating basis and cannot afford to maintain separate CAM tools for each machine category. The software reads solid CAD models directly, detects machinable features automatically, and generates machine-specific NC code through a post-processor layer that targets the specific CNC control on each machine tool.

In a typical shop workflow, EdgeCAM sits between the CAD system and the machine tool. A programmer imports a solid model from SolidWorks, Inventor, CATIA, or a neutral format; EdgeCAM interrogates the geometry to identify holes, pockets, and features; the programmer assigns operations, tooling, and cutting strategies; and the post-processor outputs NC code formatted for the target controller — Fanuc, Siemens 840D, Heidenhain TNC, or others. For shops that also run turning centers and EDM equipment, EdgeCAM handles those programming tasks within the same environment, reducing the need to maintain and train on separate CAM packages for each machine type.

EdgeCAM Programming Tools: From Feature Detection to Machine-Ready NC Code

Reading a Solid Model and Identifying What Needs to Be Machined

Most NC programming time in high-mix shops is spent translating CAD geometry into machining operations manually — picking faces, defining depths, identifying hole patterns. EdgeCAM eliminates much of this through automatic feature recognition, which interrogates imported solid models and detects machinable features including holes, circular pockets, rectangular pockets, bosses, slots, and edges without requiring the programmer to select each surface individually. The function extracts feature geometry, assigns default operation types based on feature class, and populates a machining sequence that the programmer then reviews and refines. For parts with repetitive feature patterns — flanges with bolt circles, housings with multiple bore diameters — this significantly compresses the setup phase. Feature recognition works directly on parametric solid geometry from SolidWorks, Inventor, CATIA, and native EdgeCAM models, with automatic work plane recognition applied to multi-face parts.

Removing Material Fast Without Overloading the Cutter

In roughing operations on complex 3D cavities — mold cores, aerospace brackets, impeller blanks — conventional offset toolpaths generate highly variable tool engagement angles that spike cutting forces and accelerate tool wear. EdgeCAM addresses this with waveform high-speed roughing, a constant-engagement toolpath strategy that maintains a consistent radial chip load throughout the cut by continuously adjusting the toolpath geometry as the cutter moves through the material. The result is stable cutting forces, predictable tool life, and the ability to run at higher feed rates than conventional roughing allows without exceeding the tool’s structural limits. Waveform roughing applies to 3D milled cavities; a parallel waveform-based strategy called trochoidal grooving applies to turning and groove-cutting operations on lathes, where it maintains chip control during deep groove cycles.

Programming 4-Axis Indexed and 5-Axis Continuous Milling Operations

Parts with features on multiple faces — turbine housings, complex brackets, multi-face housings — require either multiple setups on a 3-axis machine or multi-axis programming on a 4- or 5-axis machine center. EdgeCAM supports 2.5-axis, 3-axis, 4-axis indexed, and 5-axis simultaneous toolpath generation, allowing programmers to address all part faces in a single setup where the machine tool permits. The 5-axis simultaneous function generates continuously tilting toolpaths for sculptured surfaces, impellers, and complex aerospace profiles, with automatic gouge protection applied throughout the toolpath to prevent cutter collision with adjacent surfaces. For shops whose 5-axis work involves deep structural pockets or thin-wall aerospace components requiring certification-level analysis, Siemens NX CAM or Catia-based manufacturing modules provide more advanced tolerance management at that tier.

Setting Up the Machining Environment Before Any Code Is Written

Before a toolpath can be generated, a programmer must define the machining orientation, establish the work datum, specify stock dimensions, select fixtures, and assign the operation to a specific machine tool — a process that involves multiple manual steps in many CAM environments. EdgeCAM consolidates this into Virtual CAM Setup, an integrated environment with fixture and machine libraries that allows the programmer to establish all setup parameters in sequence, validate stock clearance, and assign the machine before entering any toolpath commands. The function supports rapid setup for both milling and turning configurations and reduces the risk of datum errors reaching the machine floor by making the full setup geometry visible before programming begins.

Generating 3D Surface Toolpaths for Freeform and Sculpted Geometry

Mold cavities, die faces, impellers, and orthopedic implant profiles contain freeform surface geometry that cannot be addressed with feature-based 2.5-axis strategies alone. EdgeCAM’s 3D surface machining module generates toolpaths across complex sculpted surfaces using multiple roughing and finishing strategies — z-level roughing, equidistant offset finishing, scallop finishing, and flow-line passes — with automatic gouge protection applied throughout. The programmer selects a strategy appropriate for the surface curvature and the finishing tolerance required, and EdgeCAM computes the full toolpath across the surface geometry. For multi-surface impeller blades and blisks where 5-axis flow-line control is critical, dedicated impeller-machining packages may offer more granular blade and hub path control.

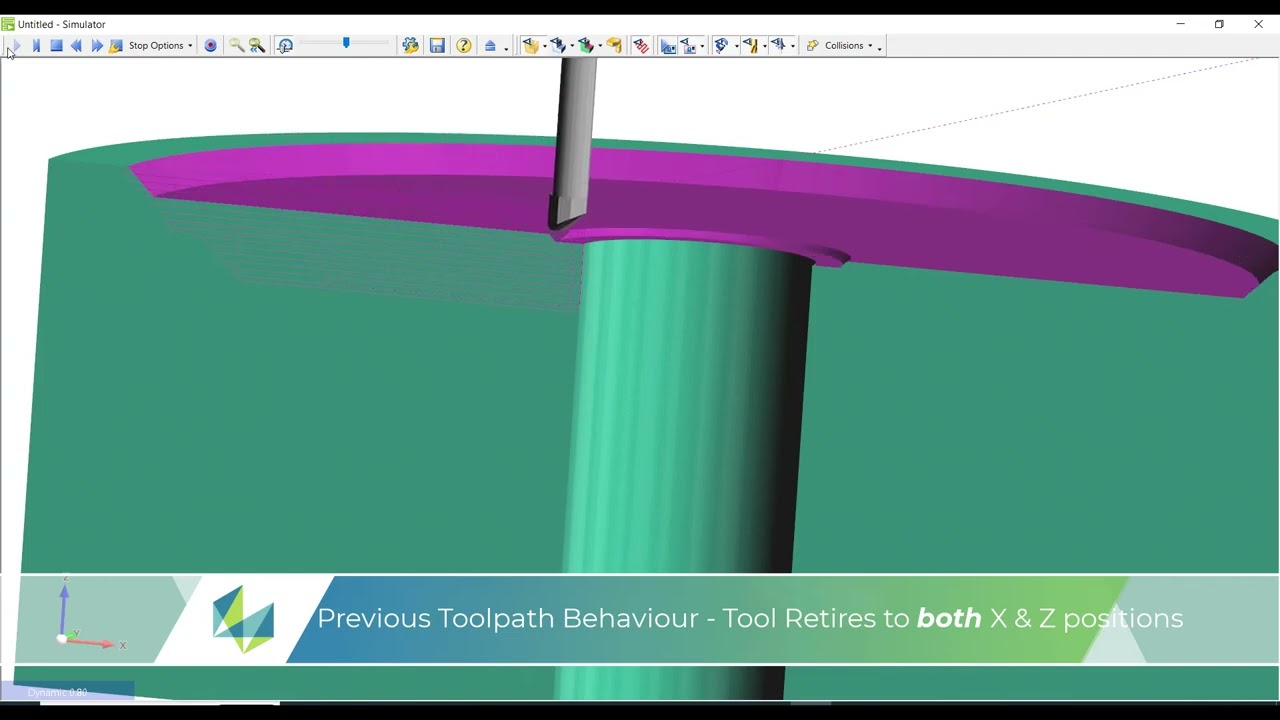

Programming Turning Centers, Sub-Spindle Machines, and Mill-Turn Equipment

Shops that run lathes alongside milling machines need turning CAM that handles not just standard 2-axis turning but also multi-turret configurations, sub-spindle synchronization, bar pull cycles, and mill-turn operations where live tooling cuts milled features on turned components. EdgeCAM programs 2-axis turning on standard lathes, turret-based multi-tool configurations, sub-spindle turning centers with synchronized spindle handoff, and full mill-turn machines where rotary milling axes combine with the turning spindle. Bar pull support is included for bar-fed turning center applications. The turning environment uses the same part model, fixture, and machine assignment framework as the milling environment, so programmers working on mill-turn parts manage the complete program from one interface.

Programming Wire EDM Operations Including 4-Axis Taper and Complex Electrode Shapes

Wire EDM programming involves geometry challenges that differ from milling and turning — corner relief geometry, taper angles, tag placement on complex closed contours, and electrode profiles that require 4-axis upper/lower guide path control. EdgeCAM supports 2-axis contour cutting and 4-axis wire EDM where the upper and lower wire guides follow independent paths to produce tapered walls and ruled-surface profiles. Corner relief variants can be applied automatically to reduce wire breakage at sharp inside corners. Tag generation for complex parts — where holding tabs retain the slug until the final cut — is handled through the part geometry, reducing the manual construction work that open-loop contour programming otherwise requires.

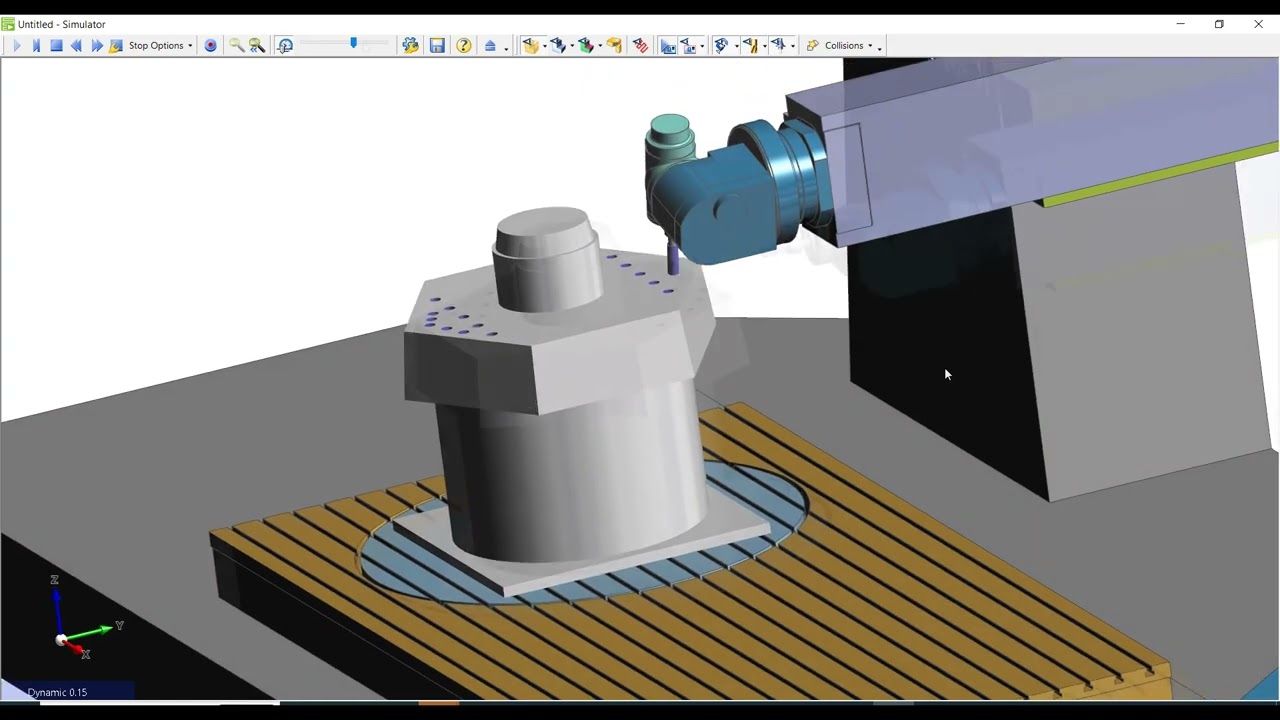

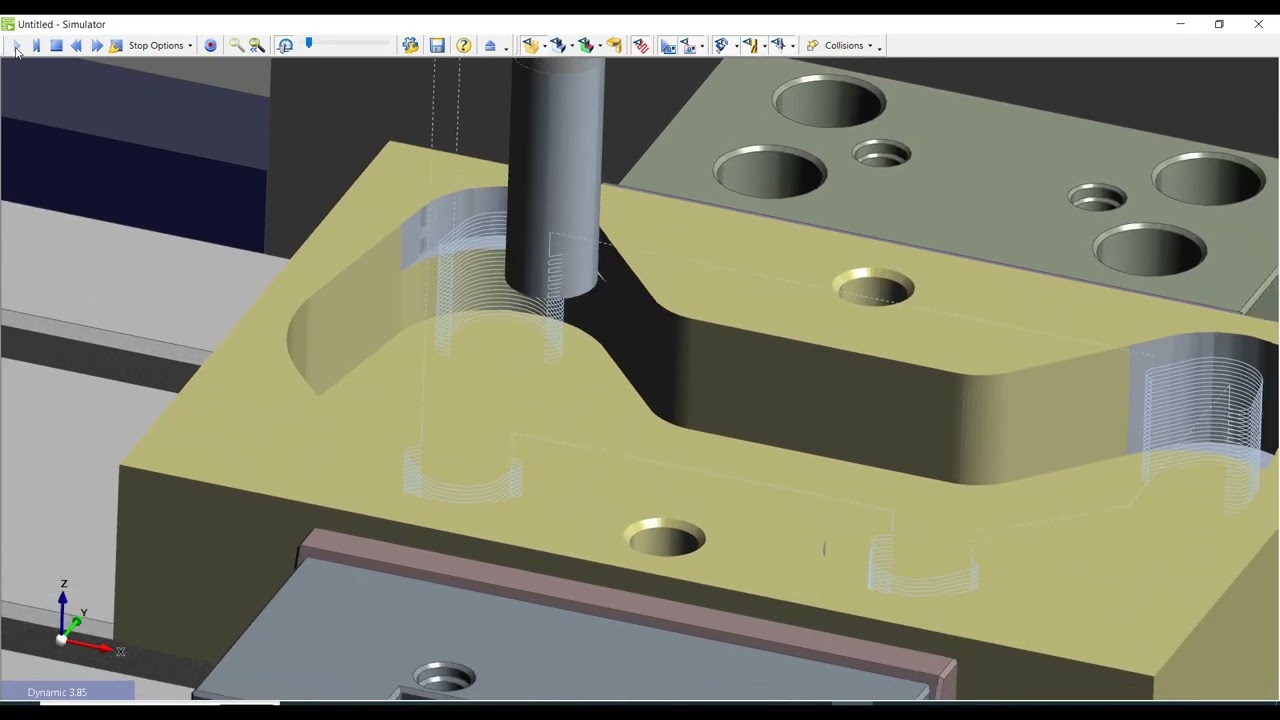

Validating the Full Program With Machine Tool Simulation Before Cutting Starts

Errors that reach the machine — collisions between the spindle and fixture, toolholder interference with the part, incorrect work datum — are expensive to diagnose and can damage tooling or the machine. EdgeCAM’s machine tool simulation visualizes the complete machining operation including toolpath motion, material removal, spindle and toolholder geometry, and fixture interaction in a 3D environment before any NC code is sent to the machine. Collision detection flags toolholder-to-fixture and tool-to-part interference. The simulation runs against the same post-processor output that will be sent to the machine, so what the programmer validates on screen reflects the actual NC program. For shops with complex multi-axis tombstone fixtures or large workpieces with limited clearance, simulation catches interference conditions that toolpath-only verification would miss.

Generating NC Code That Matches the Specific Control on Each Machine

NC code that is syntactically correct but formatted incorrectly for a specific control — wrong G-code dialect, missing M-codes, incorrect sub-program structure — requires manual editing before it can run, which reintroduces errors and slows prove-out. EdgeCAM addresses this through a post-processor library covering hundreds of pre-configured posts for Fanuc, Siemens 840D, Heidenhain TNC, and other common CNC controls, each formatted for the conventions of that specific controller family. For shops with proprietary or customized controls, EdgeCAM supports custom post development. The post-processor layer means the same toolpath data generates correctly formatted code for different machines in the shop without reprogramming the operation.

Modifying Part Geometry Without Leaving the CAM Environment

When an incoming CAD model requires a minor revision — a pocket depth change, a fillet modification, a family-of-parts variant — returning to the originating CAD system, making the change, and re-importing adds time and can break toolpath associativity. EdgeCAM includes Part Modeler, a parametric solid modeling module for creating and modifying 3D solid geometry directly within the CAM environment. Part Modeler supports feature-based solid construction and modification, allowing quick revisions and family-of-parts generation without external CAD software. It is designed for programming-support geometry tasks rather than full product design — shops requiring complex assembly modeling or advanced surfacing should use a dedicated CAD platform.
