Buy Autodesk Inventor Professional Software

Autodesk Inventor Professional

Version	Price & Buy
2026.1.1	$75
2025.2.1	$65
2024.2	$60
2023.5.2	$55
2022	$50
2021 64bit	$45
2020 64bit	$45
2019 64bit	$45
2018 x64	$45
2017 x64	$45
2016 x64	$45
2015 x32+x64	$45
2014 x32+x64	$45
2013 x32+x64	$45

Autodesk Inventor Pro 2026: 3D CAD Software for Mechanical Design and Product Development

Autodesk Inventor Pro 2026 delivers over 140 enhancements designed to streamline mechanical design workflows and reduce repetitive tasks. The software combines parametric modeling, assembly design, and simulation tools in a comprehensive environment for product development. Engineers and designers can create detailed 3D models, generate manufacturing documentation, and validate designs through integrated analysis capabilities.

What's New in Inventor 2026

The 2026 release addresses user-requested improvements across assemblies, parts, and drawings through direct feedback from the Inventor community. Performance optimizations include faster file operations through improved multi-threading and better compression algorithms. The modernized interface extends to more commands with updated property panels and in-canvas previews.

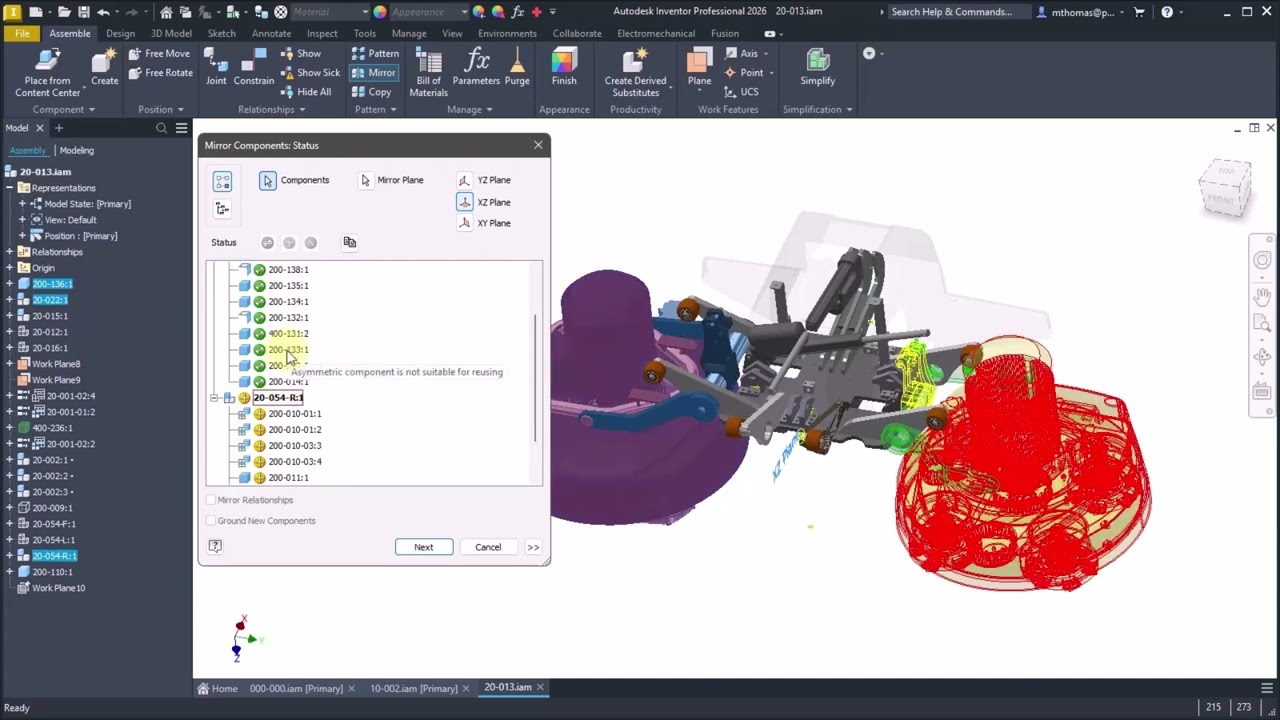

Associative Mirror for Symmetric Assemblies

Assembly mirroring now maintains associativity between source and target components for both geometry and positioning. Changes made to the original component automatically update on the mirrored side, eliminating manual rework. This feature reduces design time by approximately half for symmetrical assemblies common in automotive, machinery, and aerospace applications.

The mirror command offers two distinct modes for different workflows. Create Mirror Pattern preserves full associativity between source and target components, while Create Flat Structure mirrors geometry without maintaining links to the original. Multi-part mirrored assemblies benefit significantly from automatic constraint updates when replacing or modifying source components.

Enhanced Patterning with Irregular Spacing

Rectangular and circular pattern tools now support irregular spacing options for non-uniform distributions. Designers can select specific instances from the graphics view and assign custom distance or angular values to each. The unified command palette consolidates all pattern types with modern property panels and shaded previews for immediate visual feedback.

Global coordinate shortcuts streamline direction input during pattern creation. The irregular distance option proves valuable for organic shapes and custom configurations that don't follow uniform spacing. Pattern commands also support direct manipulation in the graphics area, reducing the number of dialog interactions required.

Modernized Sheet Metal Workflows

Sheet metal commands including Contour Flange, Corner Round, and Punch Tool transition to the modern property panel interface. Interactive in-canvas previews and manipulators allow direct adjustment of parameters without navigating multiple dialogs. Preset functionality stores sheet metal defaults, directional offsets, and behavior settings for consistent application across projects.

Users can override sheet metal rules directly within face, flange, and contour flange commands. The Punch Tool now displays folder contents through a dropdown menu with visual thumbnails of available punch templates. Corner Round supports building multiple corner rounds within a single command, streamlining the workflow for complex sheet metal parts.

• Preset support for Flange and Contour Flange commands enables standardized design practices and faster feature creation across multiple parts.
• Real-time previews show bend allowances and flat pattern results before committing changes, reducing trial-and-error iterations.
• Breadcrumb navigation provides quick access to underlying sketches during sheet metal feature creation and editing.
• Collapsible property panels minimize interface clutter while keeping essential parameters accessible for adjustment.

Part and Assembly Modeling Capabilities

Inventor Pro 2026 provides comprehensive tools for creating parametric parts and assemblies with full design intent capture. The software supports constraint-based modeling where dimensions and relationships drive geometry updates. Assembly modeling includes interference checking, relationship management between components, and multiple representation states for different configurations.

Parametric Design with Constraints and Dimensions

Parametric modeling relies on sketch constraints, dimensions, and formula-driven parameters to control design intent. Geometric and dimensional constraints ensure relationships between features remain intact through design changes. Parameter grouping organizes model and user parameters into named collections for improved management in complex parts and assemblies.

Direct modeling tools complement parametric workflows with push-pull controls for imported geometries. Users can move, rotate, resize, or scale features without recreating constraint relationships. Freeform modeling adds organic shape capabilities by manipulating points, edges, and faces directly on the model surface.

Model States for Design Variations

Model States consolidate under a new Representations folder alongside model views for streamlined navigation. The table editor enables simultaneous editing of multiple model states, similar to iPart factory capabilities. Enhanced visual cues include updated tooltips and status icons that clearly indicate the active model state being edited.

Zero-quantity parts now appear in bills of materials when using Model States for different configurations. Users can share or break BOM relationships between model states through the updated management interface. The comparison feature displays differences between selected model states in light blue highlighting, making variations immediately visible.

Simplify Feature for Streamlined Models

The Simplify command extends to part environments through the Simplification panel on the 3D Model tab. Users can exclude bodies by size, remove specific features, or replace complex bodies with simplified envelopes. Template support includes both standard and custom simplification presets for consistent application across projects.

Simplified models export directly to Revit format for architectural and construction workflows. The feature proves essential when sharing designs with stakeholders who need visual representation without full engineering detail. Faster access to simplification tools through dedicated panels reduces the steps required to create lightweight model representations.

Advanced Design Tools and Automation

Automation capabilities reduce repetitive tasks through rule-based design and intelligent content libraries. Built-in generators create common mechanical components based on engineering calculations and standards. Component libraries provide immediate access to bolted connections, gears, cams, belts, springs, and structural members.

iLogic for Design Automation

iLogic applies engineering knowledge through customizable forms that rapidly configure new designs. Rules and logic drive parameter values, feature suppression, and component placement based on design requirements. The automation functionality extends to managing iProperties, controlling assembly configurations, and generating design variations from a single master model.

Task Scheduler now includes options to disable iLogic rules and event triggers during batch operations. This prevents unintended rule execution when processing multiple files in automated workflows. API enhancements provide more sample code for users developing custom automation strategies beyond standard iLogic capabilities.

Frame Generator for Structural Design

Automated tools create weld frame structures with standard or custom structural members. The generator supports beam elements for structural simulation of frame assemblies. Double-click editing provides quick access to final adjustments without exiting the frame design environment.

Frame Generator handles complex connections between members with automatic trimming and joining. Users select structural shapes from content libraries or define custom profiles for specialized applications. The workflow integrates with assembly constraints to position frames accurately within larger product designs.

Content Center Library and Favorites

Content Center provides comprehensive libraries of standard components including fasteners, bearings, and structural shapes. The 2026 release adds adjustable favorites that can be stored locally or shared across a network. Improved search filters and parameters speed selection of appropriate components for specific applications.

Users can configure Content Center libraries to match organizational standards and preferred suppliers. The Bolted Connection Generator now enables selection of specific bolt thread designations for accurate modeling. Involute Splines Calculator expands to include two types of involute spline connections for power transmission designs.

Drawing and Documentation Features

Drawing creation tools place appropriate views and annotations quickly from 3D models. The software generates detail views, section views, and exploded assembly views with automatic alignment. Dimensions and notes update when the source model changes, maintaining accuracy throughout the design process.

Sketch-Based Break Views with Precise Control

Break views now support sketch-based definition using parallel lines for precise control over break positions. Users can create new break line sketches or reference existing ones when defining view breaks. Dimensioned break lines adapt automatically when the model changes, maintaining proper alignment in documentation.

The sketch storing in the browser enables future editing when drawing requirements change. Projected detail views that are broken or jagged now display correctly to avoid confusion in manufacturing documentation. This addresses a significant usability concern where view terminations appeared incorrect in projected views.

New Dimensioning Types for Manufacturing

Linear Sum and Angular Sum dimension types define cumulative distances or angles across repeated features. These dimension styles prove ideal for documenting bolt patterns, hole arrays, or regularly spaced cuts. Architectural dimensioning follows DIN 1356-1 standard for projects requiring compliance with European building specifications.

The ability to retrieve and display model dimensions in multiple views strengthens communication with manufacturing. While not standard practice, this flexibility supports cases where the same dimension needs visibility in different drawing views. Flip Direction functionality extends to angular dimensions, complementing the existing capability for linear dimensions.

• Sketch-based break views provide dimensional control over break line placement with automatic updates when models change.
• Cumulative dimension types reduce annotation time for repeated patterns common in mechanical designs and assemblies.
• Enhanced detail labeling reuses deleted label values appropriately when creating new detail views on the same sheet.
• Parts list prompt warns about unsaved changes when closing, preventing accidental loss of BOM edits.

Model-Based Definition and 3D Annotations

Model-based definition embeds 3D dimensions, annotations, and geometric tolerances directly on part models. This approach supports downstream manufacturing applications that consume annotated 3D data. The annotations remain associated with model features and update when geometry changes.

3D annotations reduce reliance on traditional 2D drawings for simple parts and assemblies. Dimensions and tolerance callouts appear directly in the 3D environment where they apply. This workflow aligns with digital manufacturing initiatives that leverage model-based data throughout production processes.

Simulation and Analysis Tools

Inventor Professional includes integrated simulation capabilities for validating designs before manufacturing. Stress analysis performs quick checks on individual parts or comprehensive analysis of complete assemblies. Dynamic simulation evaluates motion, speed, and acceleration by applying forces to mechanism designs.

Stress Analysis for Part Validation

Stress analysis tools evaluate how parts respond to applied loads, constraints, and material properties. The solver identifies high and low stress concentrations that indicate potential failure points or over-designed areas. Results display through color-mapped visualizations showing stress distribution across the geometry.

Shape Generator uses stress analysis results to optimize designs by suggesting material removal from low-stress regions. The iterative approach helps create lightweight components while maintaining structural integrity. Analysis can run on single parts during initial design or on complete assemblies for system-level validation.

Dynamic Simulation for Motion Studies

Dynamic simulation applies forces to assemblies and calculates resulting motion, velocity, and acceleration. The tool evaluates mechanism performance under various loading conditions and operating scenarios. Joint definitions control how components move relative to each other during simulation runs.

Physical environment settings define gravity, friction, and contact parameters that affect simulation accuracy. Results help identify interference issues, binding conditions, or unexpected motion behavior before building physical prototypes. The simulation environment supports complex mechanisms with multiple moving parts and constraint relationships.

Tube and Pipe Design Capabilities

Tube and pipe design tools combine automated routing with full manual control for creating run systems. The workflow supports rigid piping, flexible hoses, and tubing with appropriate fittings and connections. Style libraries define pipe sizes, materials, and fitting standards for consistent application across designs.

Automated routing suggests efficient paths between connection points while respecting clearance requirements. Manual controls allow precise positioning where automatic routing doesn't meet design needs. The system generates accurate bill of materials that includes all pipe segments, fittings, and components for manufacturing and procurement.

Revit Interoperability and BIM Workflows

Enhanced Revit interoperability enables mechanical designers to participate effectively in building information modeling projects. The software supports both authoring BIM content and consuming Revit data within Inventor assemblies. Bidirectional workflows maintain design intent when exchanging information between disciplines.

Assigning Revit Categories to Components

Designers can now assign Revit categories to Inventor components through the iProperties dialog or BOM interface. Multiple items receive category assignments simultaneously through graphics area selection. The Revit category column integrates into bills of materials for streamlined classification across assemblies.

Category support extends to sketches, 3D annotations, part lists, leaders, and text boxes throughout the design environment. This comprehensive integration ensures proper classification when exporting mechanical systems to Revit models. Search functionality helps locate appropriate property mappings for export requirements.

BIM Content Environment Enhancements

The BIM Content ribbon reorganizes for improved AEC workflow support with clearer command grouping. New UCS and Placement commands assist in proper orientation and location of mechanical assets within building coordinate systems. The enhanced Placement feature ensures accurate positioning of equipment and systems in architectural context.

Include Properties command provides greater control over metadata shared during Revit export processes. Users select default categories and specify which iProperties travel with the exported geometry. This control prevents unnecessary data transmission while ensuring critical information reaches downstream applications.

• Batch category assignment applies Revit classifications to multiple components simultaneously through graphics selection.
• Coordinate system tools align mechanical designs accurately within building models for clash detection and coordination.
• Property filtering controls which metadata exports to Revit, balancing information needs with file size considerations.
• Simplified export workflow creates lightweight geometry representations suitable for architectural coordination models.

Simplified Export for AEC Projects

Simplification tools prepare mechanical designs for export to Revit by removing unnecessary detail. The workflow creates focused representations that contain essential geometry and metadata without complex internal features. Direct export to RVT format eliminates intermediate translation steps and potential data loss.

Templates standardize simplification approaches for consistent model preparation across project teams. Custom templates capture organizational requirements for level of detail appropriate to different project phases. The simplified models maintain associativity with source designs, allowing updates when mechanical systems change.

For Home Users and Learning Projects

Inventor Pro 2026 serves individuals building CAD skills for personal projects, hobby work, or career development. The comprehensive toolset supports learning parametric modeling principles without feature limitations. Home users and makers benefit from the same professional capabilities used in industrial product development.

Accessible Tools for DIY and Maker Projects

The software provides a budget-friendly option for home, learning and hobby projects compared to ongoing subscription requirements. Mechanical design tools handle everything from simple brackets to complex multi-part assemblies. Content Center libraries eliminate the need to model standard fasteners and components from scratch, accelerating project completion.

Makers developing prototypes benefit from integrated sheet metal tools that generate accurate flat patterns for fabrication. Frame Generator supports designs for structural projects like workbenches, equipment stands, or custom machinery. The software handles both traditional manufacturing processes and modern techniques like 3D printing and CNC machining.

Building Skills with Parametric Modeling

Learning parametric modeling develops valuable skills applicable across engineering and design disciplines. The constraint-based approach teaches proper design intent capture that makes models easy to modify. Students and self-taught users can practice industry-standard workflows used by professional mechanical designers.

Starting with simple parts and progressing to complex assemblies builds proficiency systematically. The software includes mechanical concept and layout design tools that open DWG files as bases for 3D models. This capability bridges 2D drafting knowledge into the 3D modeling environment, easing the learning curve for users transitioning from AutoCAD.

Creating Manufacturing-Ready Designs

Drawing creation capabilities produce professional documentation suitable for fabrication shops and manufacturers. The software automatically generates detail views, sections, and exploded views with proper annotation placement. Bill of materials extraction provides accurate parts lists for procurement and assembly planning.

Model-based definition supports modern digital manufacturing workflows that consume 3D annotated models directly. Users can specify tolerances, surface finishes, and manufacturing notes that travel with the geometry. This represents a one-time purchase instead of an ongoing subscription, allowing continued access for long-term projects and skill development.

• Parametric modeling skills transfer directly to professional engineering environments across multiple industries.
• Comprehensive content libraries provide standard components without requiring manual modeling of common parts.
• Manufacturing documentation tools generate drawings that communicate design intent clearly to fabricators and machinists.

System Requirements and Performance

Hardware selection significantly impacts Inventor performance, especially when working with large assemblies or running simulations. The software benefits from high-frequency processors, professional graphics cards, and sufficient RAM for complex models. Understanding system requirements helps users configure workstations that deliver smooth operation.

Hardware Recommendations for Smooth Operation

Processor selection prioritizes high clock speeds since most Inventor operations use only a single CPU core. Current generation Intel Core Ultra or AMD Ryzen 9000 Series processors provide strong single-thread performance alongside adequate core counts. The Intel Core Ultra 9 285K leads in both modeling and data translation benchmarks for typical CAD workflows.

Graphics cards should offer DirectX 11 support with at least 8GB of video RAM for professional work. The NVIDIA RTX 2000 Ada 16GB handles small to medium assemblies effectively, while the RTX 4000 Ada 20GB suits larger projects. Complex assemblies benefit from the RTX PRO 5000 Blackwell 48GB with its substantial memory capacity for handling detailed geometry.

RAM requirements scale with assembly complexity, starting at 32GB for most users. Large assemblies with thousands of parts may require 64GB or more for optimal performance. Assemblies exceeding 1000 unique parts benefit from 64GB RAM, while projects approaching 7000 parts should provision 128GB for smooth operation.

Optimized Performance for Large Assemblies

Storage configuration affects file loading and saving times significantly. Solid-state drives deliver substantially faster performance than traditional hard drives for both the operating system and active project storage. A dedicated SSD for project files separate from the OS drive further improves workflow responsiveness.

Multi-threading enhancements and improved file compression accelerate opening and saving operations in the 2026 release. Multi-monitor support provides flexible working arrangements, maintaining functionality even when disconnecting external displays. Migration to Inventor 2026 from previous versions benefits from optimized upgrade processes that reduce transition time.

Operating system support includes 64-bit Windows 11 and Windows 10 for broad compatibility. The software requires .NET Framework 8.0 or later and supports Microsoft Excel 2016 or later for bill of materials integration. Internet connectivity enables web installation, collaboration features, and licensing validation, though offline operation remains possible after initial setup.
