AutoCAD vs SolidWorks: Key Differences by Workflow
AutoCAD and SolidWorks are both CAD applications, but they organize design work around different kinds of project records. AutoCAD is the more natural fit when drawings, layouts, sheets, annotations, and DWG files are the controlled deliverables. SolidWorks is the more natural fit when parametric parts, assemblies, and model-linked mechanical documentation are the controlled deliverables.
That distinction matters more than reducing the comparison to “2D versus 3D.” AutoCAD can create 3D geometry, and SolidWorks can produce detailed 2D drawings. The real question is what must stay authoritative and editable when the project changes.
Choose AutoCAD when the job is mainly drawing-centered. Choose SolidWorks when the job is mainly model-centered. Use both when a building, plant, site, or facility record must coexist with machinery or products designed as mechanical assemblies.

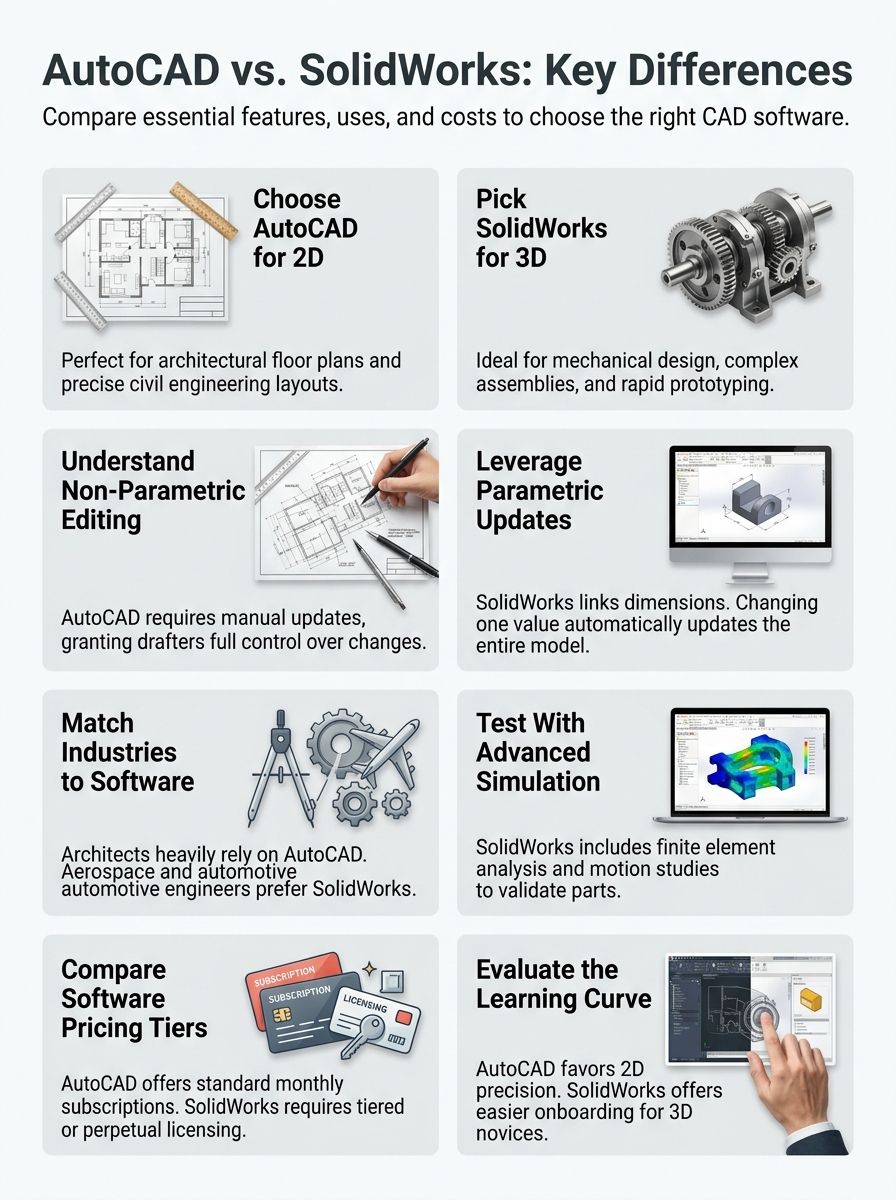

AutoCAD vs SolidWorks at a Glance
The comparison below focuses on nine differences that most directly change the software decision.
| Decision-changing difference | AutoCAD | SolidWorks |
|---|---|---|
| 1. Authoritative project record | Usually the drawing, layout, sheet set, schematic, detail, or DWG documentation set | Usually the parametric part, assembly, or model-driven mechanical design |
| 2. Primary workflow | Drawing-centered CAD for documentation, coordination, layouts, schematics, plans, and general design work | Model-centered mechanical CAD for parts, assemblies, product development, and machine design |
| 3. 2D drafting and documentation | A core strength; layers, blocks, xrefs, layouts, annotations, dimensions, and plotting remain central to the workflow | Strong for model-linked mechanical drawings, but the drawing is normally downstream of the part or assembly model |
| 4. Parametric 3D modeling | Supports 3D modeling, but general 3D geometry lives inside a broader drawing-centered environment | Feature-based parametric modeling is central to how mechanical parts are created and revised |
| 5. Assemblies and design relationships | Can document equipment and layouts, but mechanical assembly relationships are not the central project structure | Parts and assemblies are core project objects, with relationships intended to support mechanical design changes |
| 6. Revision logic | Revisions are controlled through geometry, layers, blocks, xrefs, layouts, standards, and drafting discipline | A change to a controlling dimension or feature can propagate through related model geometry and associated documentation, subject to rebuild and verification |
| 7. Interoperability and file handoff | Strong when the receiving workflow is DWG/document based; exchanged 3D geometry still needs validation | Strong when the receiving workflow expects mechanical model geometry; translated files may not preserve native design intent or relationships |
| 8. Downstream engineering context | Often remains the documentation/layout side of the workflow | More naturally extends into mechanical assemblies and downstream engineering/manufacturing workflows, but exact analysis, PDM, CAM, or other capabilities depend on edition and version |
| 9. Total-cost decision | Can be the lower-friction choice when the work is already organized around DWG documentation | Can reduce repeated reconstruction in model-driven mechanical work; compare current purchase cost, training, hardware, modules, translation effort, and revision labor rather than sticker price alone |
What Are the Main Uses of AutoCAD and SolidWorks?
AutoCAD is commonly used when the work must be created, coordinated, revised, and issued as drawings. That includes floor plans, site and facility layouts, schematics, equipment-placement drawings, construction details, P&IDs, consultant backgrounds, and other documentation where DWG remains part of the working process.
SolidWorks is centered on mechanical design. It is a stronger fit when engineers and designers are creating manufactured parts, assemblies, fixtures, enclosures, machinery, sheet-metal components, prototypes, and other products where the 3D model carries the design relationships.
The overlap is real. AutoCAD can model in 3D, and SolidWorks can produce drawings. The distinction is what the team expects to remain authoritative after the next revision.
AutoCAD: 2D Drafting, DWG Documentation, and General 3D
AutoCAD is strongest when a project is organized around drawings and documentation. Layers, blocks, xrefs, layouts, annotations, dimensions, plotting standards, and reusable drafting elements make it practical for teams that need to keep a large set of drawings coordinated without turning every object into a mechanical part.
That makes AutoCAD a natural choice for work such as:
- architectural and facility drawings;
- civil and site documentation;
- electrical, instrumentation, and process schematics;
- equipment-placement and plant layouts;
- DWG archives that must remain editable;
- consultant packages organized around sheets, xrefs, layers, and plotting standards.
AutoCAD also supports 3D modeling. The important limitation is not that it “cannot do 3D”; it is that general 3D geometry is still part of a broader CAD environment whose strongest organizing model is different from a feature-based mechanical assembly workflow.
For buyers who already know they need the AutoCAD ecosystem, the current AutoCAD family and AutoCAD product pages are the appropriate places to check the versions currently offered.
SolidWorks: Parametric Mechanical Modeling, Assemblies, and Model-Linked Drawings
SolidWorks is designed around parts and assemblies. A typical workflow begins with sketches and dimensions, builds them into features, combines parts into assemblies, and then produces drawings or other downstream outputs from that model.
This structure becomes valuable when a design is expected to change repeatedly. A dimension can drive a feature, a feature belongs to a part, parts belong to assemblies, and associated drawings can remain linked to the model. The designer still has to rebuild, inspect, and verify the result, but the workflow is built around preserving those relationships.
SolidWorks is therefore a natural fit for:
- machined and manufactured parts;
- mechanical assemblies;
- fixtures and tooling;
- frames, weldments, and enclosures;
- sheet-metal designs;
- machine and product development;
- model-linked mechanical drawings;
- product variants and configurations.
The exact availability of simulation, PDM, CAM, rendering, analysis, collaboration, or other downstream tools can vary by edition and release. Those capabilities should be verified for the exact version being considered rather than assumed from the product name alone.
For the current commercial offering, check the SolidWorks family and SolidWorks Premium product pages.

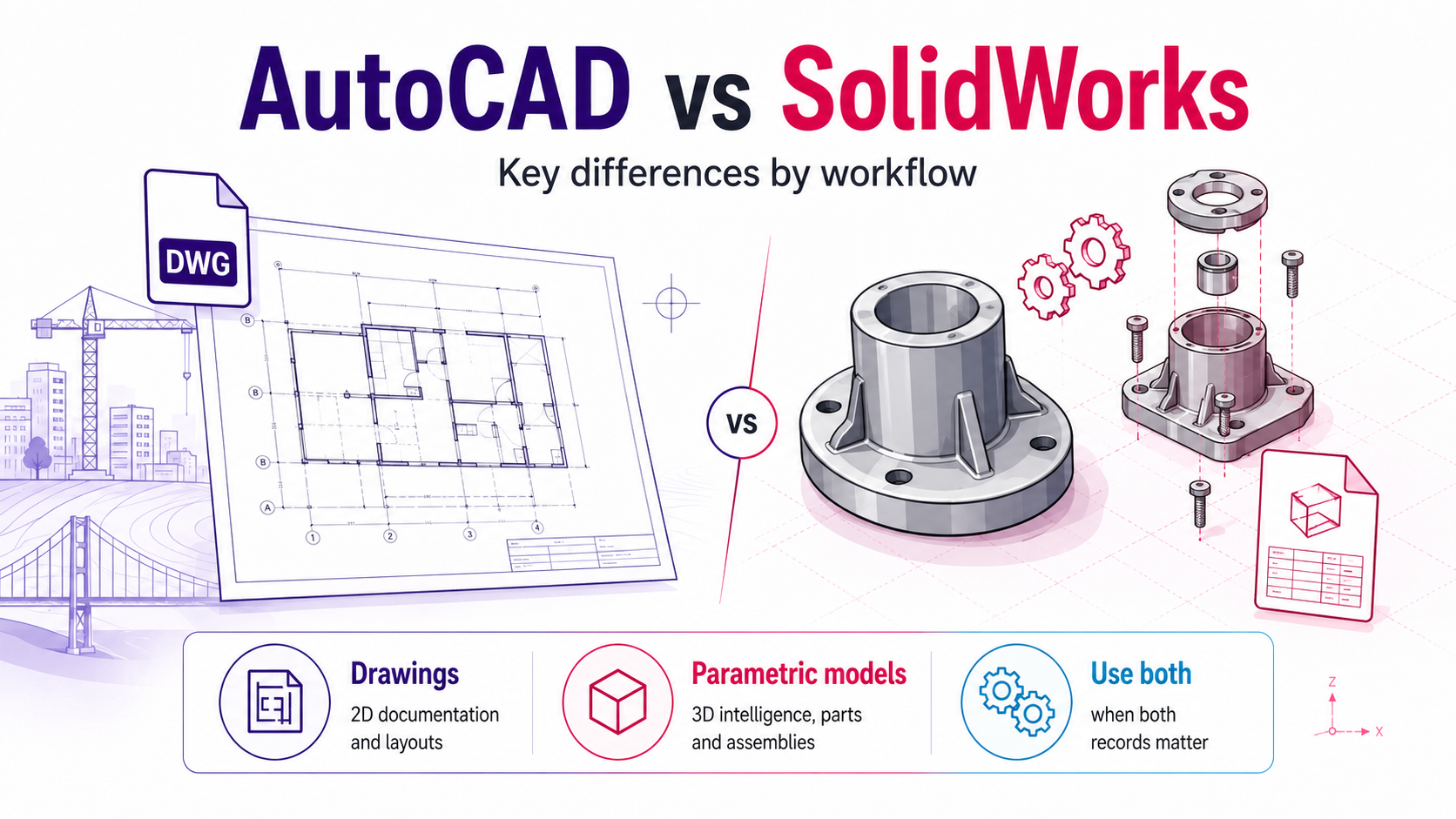

2D Drafting vs 3D Parametric Mechanical Workflow
The distinction between 2D drafting and 3D modeling is useful, but the choice is more precise when expressed as a workflow question.
Choose a drawing-centered workflow when:
- the deliverable is a plan, sheet set, schematic, markup package, or DWG file;
- geometry and annotations are managed directly in drawings;
- layers, blocks, xrefs, layouts, and plotting standards are central;
- many contributors exchange and revise documentation rather than one mechanical master model.
Choose a parametric mechanical workflow when:
- the deliverable is a designed part or assembly;
- dimensions and features should retain design intent;
- one change may need to affect related geometry;
- assemblies and model-linked drawings are part of the same design process.
This is why “AutoCAD is 2D and SolidWorks is 3D” is too crude to guide a purchase. Both can cross that boundary. What differs is the system used to organize and revise the work.
Assemblies, Drawings, and Documentation
Assemblies are one of the clearest workflow differences.
In SolidWorks, parts and assemblies are central objects. Mechanical relationships between components can be represented inside the assembly, and drawings can be generated from the current model state. That makes the system well suited to products and machines where parts must fit together and revisions need to remain coordinated.
In AutoCAD, an equipment layout can contain many components, references, and details, but the project is not normally organized as a mechanical assembly with the same model-driven relationship structure. The strength is instead direct control over the drawing record.
For documentation, the distinction is similarly important:
- AutoCAD is naturally centered on drawings as the controlled record.
- SolidWorks can produce detailed drawings, but those drawings normally derive their value from the underlying part or assembly model.
Neither method is automatically superior. The better method is the one that matches the record your team must maintain.
How Design Revisions Change the Choice
The cost of the next design change is often more useful than a feature checklist.
Imagine a bracket or enclosure changes width. In a model-centered SolidWorks workflow, the controlling dimensions and features can update related geometry. The part can rebuild, its fit in the assembly can be checked, and associated drawing views can update. Verification is still necessary, but the workflow is designed around linked relationships.
In an AutoCAD drawing workflow, the same kind of revision may require edits to multiple views, details, dimensions, layouts, or references. Blocks, constraints, xrefs, standards, and automation can reduce repetitive work, but consistency across drawing elements is still managed through the drafting system.
The reverse is equally important. A project made of hundreds of independent drawings, consultant backgrounds, symbols, notes, layouts, and markups may gain little from being forced into a mechanical assembly structure.
A useful decision rule is:
- Favor SolidWorks when one design change should propagate through related mechanical model relationships and documentation.
- Favor AutoCAD when the controlled revision process lives in DWG geometry, layers, blocks, xrefs, layouts, and sheet standards.

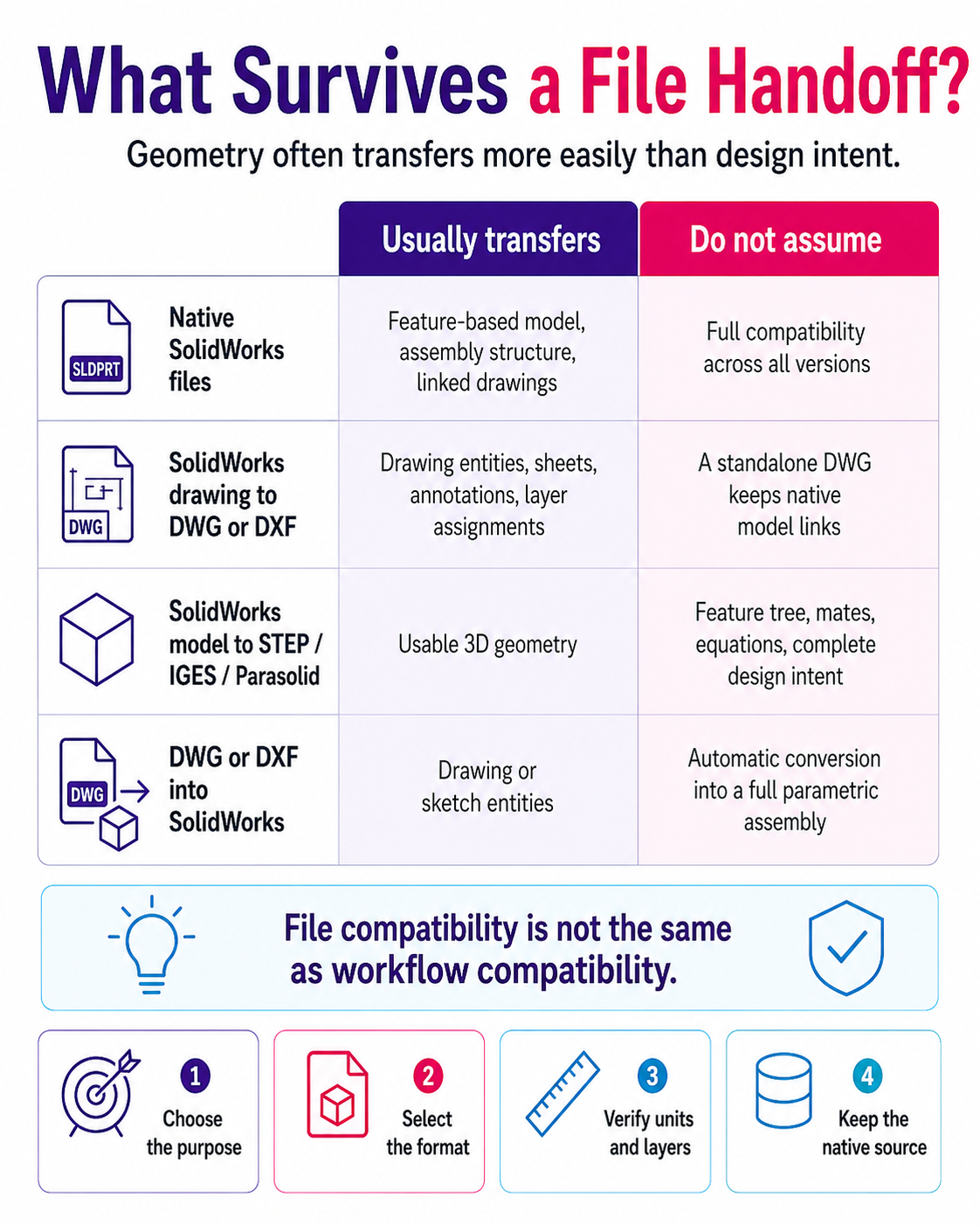

File Formats and Interoperability
AutoCAD and SolidWorks can participate in the same workflow, but file compatibility is not the same as workflow compatibility.
A translated file can preserve useful geometry without preserving everything that made the source file editable in its native application. Depending on the format and workflow, translation may lose or alter feature history, parametric relationships, assembly logic, configurations, annotations, layers, or other application-specific behavior.
That means file exchange should start with a question: what does the receiving team actually need?
Possible needs include:
- an editable drawing;
- reference geometry;
- a manufacturing solid;
- a native parametric model;
- a review file;
- a controlled snapshot for coordination.
The exact import and export formats supported by the AutoCAD and SolidWorks versions being used should be verified before the workflow is standardized.
A Safe File-Exchange Checklist
- Decide what the receiving team actually needs.
- Choose an exchange format for that purpose.
- Verify units and scale.
- Verify orientation.
- Verify geometry after translation.
- Verify layers, annotations, or other documentation where relevant.
- Keep the native source file as the authoritative design record.
A file that opens successfully is not automatically a file that preserves the original design logic.
If imported geometry regularly arrives without usable feature history, the next question is whether the team needs parametric CAD or direct editing for imported geometry.
When AutoCAD and SolidWorks Should Be Used Together
Some projects genuinely have two authoritative records.
A manufacturer may design a machine, fixture, enclosure, or production component in SolidWorks while the surrounding building, plant, facility, or site is controlled in AutoCAD. Selected geometry can then move between the systems for coordination.
In that workflow:
- SolidWorks remains authoritative for the mechanical equipment or product;
- AutoCAD remains authoritative for the facility, site, layout, or drawing set;
- exchanged files are controlled handoff records, not replacements for both native sources.
Using both makes sense when the project has two different records that must stay editable in their native workflows. Merely owning both applications is not a reason to use both.
Teams that are still choosing the broader mechanical-design stack can also use the Mechanical & Product Design hub as the higher-level selection path.
Simulation and Downstream Engineering Context
Simulation and manufacturing-related workflows can matter to the decision, but their availability depends on the exact SolidWorks edition, version, and any required modules or related products.
The useful distinction is narrower:
- AutoCAD is often used as the drawing, documentation, layout, or coordination side of a project.
- SolidWorks is more naturally centered on mechanical parts and assemblies that may continue into engineering validation, manufacturing preparation, data management, or other downstream workflows.
Before a buyer treats any downstream capability as a deciding factor, verify:
- the exact SolidWorks edition and release;
- whether the required capability is included, optional, or provided by another product/module;
- whether existing downstream software supports that release;
- whether customer and supplier file requirements match the proposed workflow.
How to Compare AutoCAD and SolidWorks Cost
Static vendor prices age quickly and can make an otherwise useful comparison stale.
A better method is to compare total workflow cost.
Check:
- the current purchase cost of the exact version or edition required;
- workstation upgrades, if any;
- employee training;
- file conversion and validation effort;
- required add-ins or specialized modules;
- compatibility with customer and supplier files;
- time spent maintaining repeated revisions;
- whether the organization must operate both CAD environments.
A lower purchase price does not automatically mean a lower-cost workflow. The better value is the system that creates, revises, exchanges, and maintains the required deliverables with the least avoidable reconstruction.
For a broader budgeting method, review CAD software cost and licensing factors before comparing the current product offers.
For current ProSoftStore pricing and availability, check the AutoCAD and SolidWorks Premium product pages.
When Should You Choose AutoCAD?
Choose AutoCAD when the project is primarily controlled through drawings and DWG documentation.
It is the more natural fit when:
- the required output is a sheet set, plan, schematic, detail, or consultant-ready DWG;
- the workflow depends on layers, blocks, xrefs, layouts, annotations, and plotting standards;
- documentation and coordination matter more than mechanical assembly intelligence;
- existing archives and partners already work around DWG;
- revisions are expected to be managed as drawing changes.
This does not mean AutoCAD is limited to 2D. It means the drawing remains the center of the decision.
When Should You Choose SolidWorks?
Choose SolidWorks when the project is primarily controlled through parametric mechanical models.
It is the more natural fit when:
- the required output begins with parts and assemblies;
- dimensions and features should preserve mechanical design intent;
- changes should remain linked through the model wherever possible;
- model-linked drawings are part of the workflow;
- product development, machinery, fixtures, tooling, enclosures, or similar mechanical work is central.
If the team has already narrowed the choice to professional parametric mechanical CAD, the next step may be to compare SOLIDWORKS with Creo before committing to one ecosystem.
If simulation, PDM, CAM, manufacturing, or other downstream functions matter, verify the exact edition and version before making them part of the purchase decision.
Which Program Should You Learn First?
Learn the program that matches the work you expect to do most often.
Learn AutoCAD first when your work is mainly:
- drafting and documentation;
- architecture, facilities, site work, or schematics;
- DWG coordination;
- sheet production and drawing revisions.
Learn SolidWorks first when your work is mainly:
- mechanical engineering;
- product development;
- manufactured parts;
- assemblies;
- machine design;
- fixtures and prototypes.
Do not treat one application as universally “easier.” Someone with a drafting background may find AutoCAD more natural, while someone who already thinks in physical parts, features, and assemblies may understand SolidWorks more quickly.
Platform and Version Compatibility
Version fit can matter as much as product choice.
This comparison is written for a Windows desktop workflow. Before choosing a specific AutoCAD or SolidWorks release, verify:
- the Windows versions supported by that release;
- processor, memory, and graphics requirements if they matter to the workstation plan;
- compatibility with existing project files;
- required add-ins and downstream software;
- the file versions used by customers, suppliers, and coworkers;
- whether any critical import/export workflow differs by release.
The newest release is not automatically the best operational fit if the rest of the workflow depends on older project files or downstream software.
Five Questions That Decide the Choice
Before buying, answer these five questions:
- What is the authoritative project record? A DWG drawing/sheet set or a parametric mechanical model?
- How should revisions propagate? Through drawing edits and standards, or through linked model features, parts, assemblies, and drawings?
- Which file formats must customers, suppliers, and archives accept?
- Which Windows/workstation environment and software versions must remain compatible?
- Where does the workflow end? Documentation, or downstream mechanical work that may involve assemblies, manufacturing, data management, simulation, or other specialized tools?
If most answers point to drawings and DWG coordination, AutoCAD is usually the more natural primary system.
If most answers point to parametric parts, assemblies, and model-driven mechanical development, SolidWorks is usually the more natural primary system.
If the project has two different authoritative records, using both can be the correct answer.
Frequently Asked Questions
What are the key differences between AutoCAD and SolidWorks?
AutoCAD is primarily a drawing-centered CAD environment, while SolidWorks is primarily a parametric mechanical modeling environment. AutoCAD is strongest when plans, layouts, schematics, sheets, and DWG documentation are the controlled records. SolidWorks is strongest when parts, assemblies, and model-linked mechanical documentation are the controlled records.
Which is better for manufacturing and product design?
For products, machinery, fixtures, and other work built around parametric parts and assemblies, SolidWorks is generally the more natural fit. AutoCAD can still be important for shop drawings, layouts, facility documentation, and other drawing-centered parts of the manufacturing environment. If downstream CAM, simulation, PDM, or similar capabilities matter, verify the exact SolidWorks edition and version before treating them as included.
Is AutoCAD or SolidWorks easier to learn?
The learning curve depends on the task and the user’s background. AutoCAD may feel more natural to someone who already understands plans, layers, blocks, coordinates, and drafting standards. SolidWorks may feel more natural to someone who thinks in physical parts, features, constraints, and assemblies. Choose the learning path that matches the work you need to perform.
How do file formats and workflow compare?
AutoCAD workflows are commonly organized around DWG drawings and documentation. SolidWorks workflows are organized around native parametric part and assembly models plus their associated drawings. The two systems can exchange data, but successful translation does not guarantee that native feature history, design intent, assembly relationships, annotations, or editing behavior will transfer intact. Verify the exact formats supported by the versions in use.
Can AutoCAD and SolidWorks be used together?
Yes. They work well together when a project genuinely needs two different authoritative records—for example, a facility or plant layout controlled in AutoCAD and machinery controlled in SolidWorks. Exchange only the information needed for coordination and keep the native source files authoritative.
Which should I choose for 2D drafting versus parametric mechanical design?
Choose AutoCAD when 2D drafting, DWG documentation, layouts, schematics, and drawing control are the main job. Choose SolidWorks when parametric mechanical parts, assemblies, and model-linked drawings are the main job. If your work crosses both domains, a two-tool workflow may be more appropriate than forcing one application to own every task.
Final Decision
AutoCAD and SolidWorks overlap, but they solve different kinds of design-control problems.
Use AutoCAD when the drawing is the record that must stay correct.
Use SolidWorks when the parametric mechanical model is the record that must stay correct.
Use both when the project genuinely contains both records.
The purchase decision should then be checked against the exact versions currently available, the file formats your partners require, your Windows/workstation environment, and any downstream modules or software that the workflow depends on.
