Buy Ansys Discovery Ultimate 2022 R1 $65
Ansys Discovery Ultimate 2021 R1.6 $60

System Requirements

ANSYS Discovery Ultimate includes:
ANSYS Discovery
ANSYS SpaceClaim

Discovery AIM

ANSYS Discovery 2022 R1 AIM is a simple and affordable tool for multidisciplinary engineering calculations. With ANSYS AIM, any engineer can quickly and accurately calculate and evaluate the reliability and performance of the designed product.

Workflow templates:

ANSYS AIM offers the user an intuitive user interface for quickly setting and solving problems early in the design process. In the interface you will find ready-made templates for modeling processes, detailed visual cues and instructions.

Built-in geometry editor:

ANSYS AIM integrates ANSYS SpaceClaim direct 3D geometry modeling technology, which allows you to quickly create, edit and correct geometry. You can import and edit geometry from any CAD system and quickly prepare it for analysis.

Simulation technologies:

ANSYS AIM is based on ANSYS technologies applied throughout the modeling process. They provide an opportunity to solve problems of liquid and gas flow, dynamics and strength, thermal and electromagnetic processes and to connect all physical disciplines in the calculation.

Design and optimization:

ANSYS AIM includes the ANSYS DesignXplorer optimization technology, which allows you to explore the response of a design to loads and conditions in the parameter space. This helps to make informed design decisions, reduce weight, detuning the structure from resonance.

User Applications:

ANSYS AIM includes activity logging, Python scripting, and custom templates. This allows you to customize and re-apply best engineering practices throughout the simulation process.

Teamwork:

ANSYS AIM and other ANSYS products use the same solvers and data formats. Design engineers and professional accountants can work closely with each other to perform more detailed studies.

Discovery Live

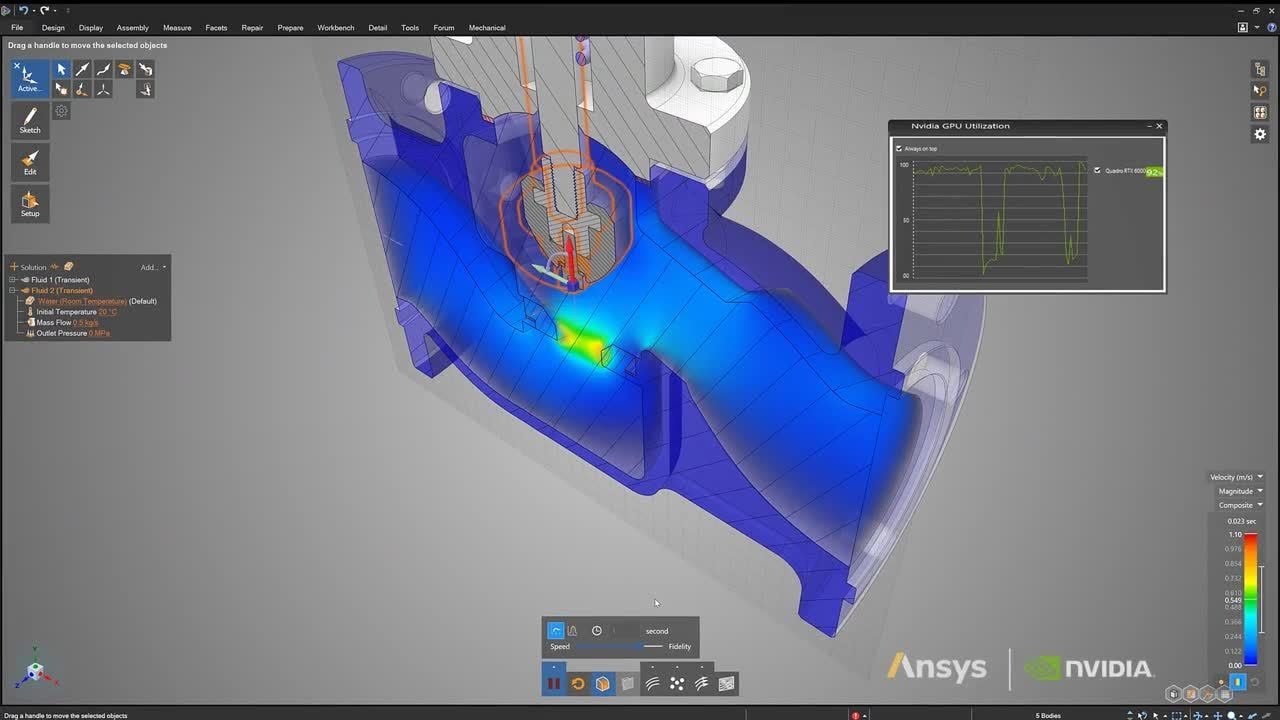

ANSYS Discovery 2022 R1 live is a new interdisciplinary platform that allows engineers to create virtual prototypes of their designs almost instantly directly from solid models. The ANSYS developers have combined the experience gained in the process of creating advanced solvers, allowing the use of graphics graphics cores (GPUs), direct geometric modeling (SpaceClaim) and some additional things necessary for sampling. All this is integrated into ANSYS SpaceClaim and forms a software product called ANSYS Discovery live.

Immediately after importing a geometric model into ANSYS Discovery live, you define what type of analysis you need to perform, specify the boundary conditions, and ANSYS Discovery live immediately starts the calculation and all this happens almost on the fly. Simplifying the model, building a grid, running the task on the account and displaying the results is performed automatically. It may take only a few seconds to get a converged solution, and after that you will have a good enough approximation to help you understand how your design works.

ANSYS Discovery live does not replace ANSYS Mechanical, FLUENT, or HFSS. This tool allows design engineers with little experience in running numerical simulations to perform quick “what if…” analyzes during the design process and explore many options to evaluate performance.
designs.

The ANSYS product is unique in that it: 1) allows you to solve various physics using the GPU and 2) is fully integrated into SpaceClaim, allowing you to conduct direct geometric modeling. The third and important point is that Discovery Live is an ANSYS product and this means that technical support will be provided for it at a fairly high level.

Unlike classic ANSYS products, modeling in Discovery Live takes much less time, allowing you to explore the model literally on the fly. This really changes modeling as we can now quickly change the model geometry, boundary conditions and understand how the design will behave at the beginning of the design process.

Discovery SpaceClaim

Ansys Discovery 2022 R1 SpaceClaim is a 3D design tool that makes computer modeling easy and fun.

The convenience of use:

Discover the most user-friendly and easy-to-learn CAD tool. Discovery SpaceClaim allows you to create and modify any 3D files at the speed of thought. You will be freed from the conventions of traditional conceptual modeling and will be able to focus on the creative rather than the technical side of the process.

Work speed:

With SpaceClaim, you can create, modify, and recreate 3D CAD or faceted geometry. Share your ideas with customers, design engineers, CAE analysts, team members and manufacturers. Import and integrate any geometry (from vendors, internal library or online resources) into a single modeling environment.

Flexibility and versatility:

Whether modeling or teaching, Discovery SpaceClaim's unique toolset lets you approximate models, engineering designs, or flatten 3D data from other CAD systems. The same tools help you prepare models for production, modeling and 3D printing, or recreate facet/STL geometry for later use.
